Multi-zone alarm walk-through metal detector, walk-through scan body temperature and metal detector with a camera and a computer
Tunnel conveyor type x-ray inspection parcel, baggage & pallet cargo system, truck/container x-ray screening system, portable medical x-ray and baggage scanner
Conveyor type metal detector which inspects pharmaceuticals & food products packaged with aluminum foil. Hand-held & conveyor type needle detector / needle detector with two detection heads
Underground metal and gold detector, hand-held metal detector, conveyor type industrial and food metal detector, inspection shoe metal detector
Patrol clock and guard patrol system, binocular military telescope,thermal imaging camera, military hunting aim telescope
Bomb detector, bomb jammer, explosive & drug detector, GPS and phone signal jammer, narcotics detector, communication jammer, liquid explosive detector, vehicle bomb inspection system, search mirror
Conveyor tunnel type mining metal detector head, food & industrial metal detector head
ON800 super wide detection type needle detector, ON798 conveyor type needle detector

Optional: SDH-938B conveyor type needle detector with two sensors, please visit http://www.topteches.com/en/html/html_130.html

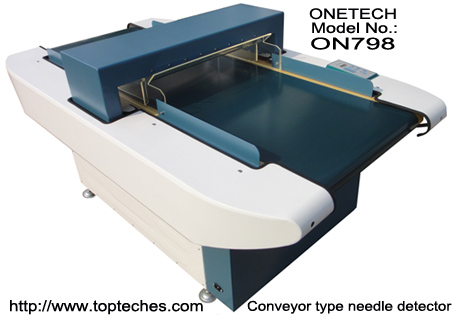

                ONETECH ON798 tunnel type metal detector, high sensitive conveyor type needle detector

Application:
It is used widely to inspect toys, shoes, hats, non-woven products, high elastic cotton clothing, paper, plastic plate, sewing products, food products, pharmaceutical products, chemical products, rubber products and so on for safety inspection, it can be installed directly on a production line to use and can also detect pharmaceutical products and food packaged by aluminum foil for safety check.

ON798 detector can professionally detect pharmaceutical products and food products packaged with aluminum foil, it can detect whether pharmaceutical products and food products packaged with aluminum foil contain a broken needle of iron or iron impurities or ferrous metal and various metals containing magnetism.

ON798 conveyor type needle detectors have been widely used in some foreign-funded factories set up in China by some companies of Japan, Taiwan, Hong Kong, USA and European countries, and they have been used all the time.
ON798 products have been exported to Turkey, Japan, Malaysia, Vietnam, Thailand, India, Brazil, Italy, Iraq, Syria, Libya, Mexico, Iran, Indonesia etc. to local customers' uses by distributors. Its sensitivity meets the customs requirements of the importing country.

Technical data:
Tunnel inspection width: 600 mm. Tunnel detection height: 120 mm. Total dimension: 1850 mm (L) x 1010 mm (W) x 1050 mm (H).
Optional: Tunnel detection width:  600 mm, 700 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm, 1300 mm, 1500 mm.
Tunnel detection height                               Tunnel detection Sensitivity
           100mm                                                    Feφ≥0.8mm
           120mm                                                    Feφ≥0.8mm
           150mm                                                    Feφ≥1.0mm
           200mm                                                    Feφ≥1.2mm
           250mm                                                    Feφ≥1.5mm
           300mm                                                    Feφ≥2.0~2.5mm
           350mm                                                    Feφ≥2.5~3.0mm
           400mm                                                    Feφ≥3.5~4.0mm
           700mm                                                    Feφ≥5.5~30mm



Power supply: AC 110V ~ 220V (±10%), 50 ~ 60Hz. Rated output:  Appr. 140W. Weight: Appr. 200kg.

Detection adjustment: automatical adjustment. Alarm method: Buzzer and Light.

Feature:
ON798 series products adopt the advanced technology, adopt know-how of high sensitivity and intelligentized location show and counting system. Products have very strong anti-interference capability, to suit more complex environment use.

1. ON798 LCD control panel gives you a good operation environment. Real time level display. An automatic counter function and automatic checking function.The conveyor belt is made from nonpoisonous material.

2. When it detects a broken needle of iron or ferrous metal or iron impurities or various metals containing magnetism, its Alarm can be given out. Designed for universal AC power supply (full range).

3. When the broken needle or other magnetic metal is found, the machine gives out an alarm, in the same time, the conveyor belt stops & return automatically.If the alarm is given out normally, the probe will give out a light to indicate a object place where the broken needle or other magnetic metal is.

4. It uses the advanced microcomputer chip and genuine sensor components manufactured by USA company and a durable industrial conveyor belt, uses high sensitivity of 12-level adjustment, its detection force does not decay and is persistent and durable. Optional function: printing reports with a printer.

Technical standards:
1. Conform to EN 60950-1: 2006+A11: 2009 electrical product safety international standard.  2. Radiation conforms to EN61000-6-3:2007 product emission international standard.  3. UKCA international safety standard certificates.  European CE & EMC international security standard certificates.

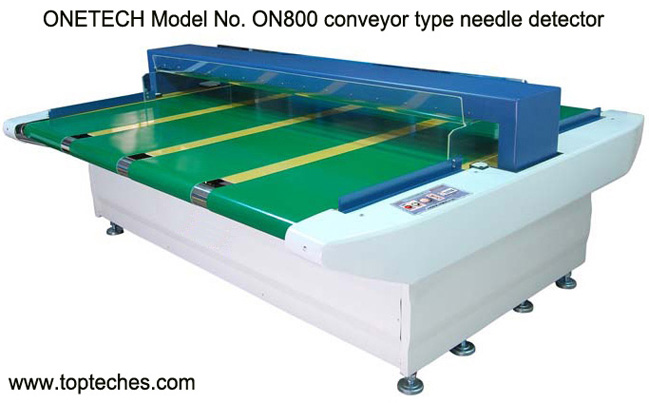

                         ONETECH ON800 super wide detection type conveyor type needle detector

Application:
ON800 series needle detectors have been widely used to inspect non-woven products, high elastic cotton clothing, paper, plastic plate, sewing products, rubber products, bed sheet, carpet and other detection items, it can be installed directly in a production line.

ON800 conveyor type needle detectors have been widely used in some foreign-funded factories set up in China by some companies of Japan, Taiwan, Hong Kong, USA and European countries, and they have been used all the time.
ON800 products have been also exported to Mexico, Indonesia, Turkey, Japan, Malaysia, Vietnam, Thailand, India, Brazil, South Africa, Italy and so on to local customers' uses by distributors. Its sensitivity meets the customs requirements of the importing country.

Feature:
ON800 series products adopt the advanced technology and micro-chip digital signal processing technology, adopt know-how of high sensitivity and intelligentized location show and counting system. Products have very strong anti-interference capability, to suit more complex environment use. Ten grade sensitivity adjustment.

1. ON800 LCD control panel gives you a good operation environment. Real time level display. An automatic counter function and automatic checking function. The conveyor belt is made from nonpoisonous material.

2. When it detects a broken needle of iron or ferrous metal or iron impurities or various metals containing magnetism, its Alarm can be given out. Designed for universal AC power supply (full range).

3. When the broken needle or other magnetic metal is found, the machine gives out an alarm, in the same time, the conveyor belt stops & return automatically; if the alarm is given out normally, the probe will give out a light to indicate a object place where the broken needle or other magnetic metal is.

Technical data:
Detection adjustment: automatical adjustment. Alarm method: Buzzer and Light. Power supply: AC 110 (±10%), 220V (±10%), 50 ~ 60Hz. Rated output:  appr. 160 W. Weight: Appr. 350kg.

Total dimension:  2360 mm (L) x 1680 mm (W) x 1050 mm (H). Tunnel inspection width: 2000 mm. ( OPTIONAL: tunnel detection width: 1600mm, 1800mm, 2100mm for selection ).

Tunnel detection height                               Tunnel detection Sensitivity
           100mm                                                    Feφ≥0.8mm
           120mm                                                    Feφ≥1.0mm
           150mm                                                    Feφ≥1.2mm
           200mm                                                    Feφ≥1.2 ~ 1.5mm
           250mm                                                    Feφ≥1.5 ~ 1.8mm

OPTIONAL:

               ON799 industrial tunnel conveyor type needle detector, tunnel metal detector head
ON799 industrial tunnel conveyor type needle detector series products adopt the international advanced technology and micro-chip digital signal processing technology, and adopt know-how of high sensitivity and intelligentized location show and counting system. ON799 products have very strong anti-interference capability to suit more complex environment use. Its details and catalog, please visit:
http://www.topteches.com/en/html/html_207.html
