TSD110A, TSD120B, TSD160A & TSD160B Truncation Communication Signal Device ( bomb signal truncation jammer, IED bomb signal truncation device, wireless/radio bomb jammer, communication signal jamming device ), SOTUE TSD40BP backpack type truncation wireless Bomb signal device ( bomb jamming device ), SOTUE HPG882 hand-held phone and GPS signal Jammer, TSD130V big range truncation communication signal device ( bomb jammer ) as follows:

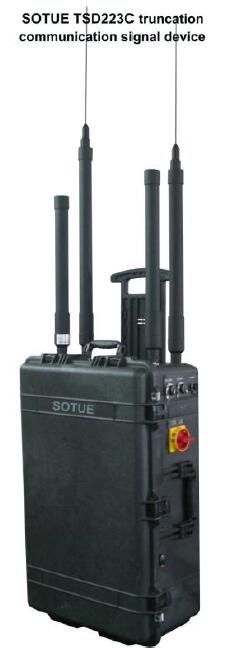

              SOTUE TSD223C truncation communication signal device for jamming drone & UAV

SOTUE TSD223C truncation communication signal device is a Mobile signal jammer of High power draw-bar box for jamming mobile phone, drone and UAV.

Application: Suitable to protect important leadership and VIP security, individual combat, SWAT teams, EOD teams, anti-terrorist units, anti-drug units, bomb squad, security checkpoints, administrative law enforcement, hostage negotiations, border control and military security forces and other application areas.

Technical data:
Total power: 800 watts
Power supply: AC 220V (±10%) / DC-48V.
Power consumption: 2400W
Host weight: 60Kg
Host size: 820 mm (L) x 540 mm (W) x 360 mm (H).
Humidity: 30% - 95%.
Operating temperature: -10 ºC to 50 ºC.
Built-in battery: DC-48V 15AH, support full power works for 60 minutes.
When the field strength is -80dBm, the jamming radius is up to 500 meters in an open field.

Feature:
1. The safety box, high pressure resistance, dustproof, moistureproof.
2. Using ultra high frequency broadband interference technology, high effective power (channel power), its interference radius is big.
3. The built-in full band's directional antennas, don't need installation of the antennas, pull it out, can use it immediately, efficient and convenient.
4. The built-in high power battery, in full power, can work for 1 hours. The equipment has an overheating protection function.

Technical standards: 1. Conform to EN 60950 1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard.

        SOTUE TSD110A truncation communication signal device ( wireless bomb signal jammer )

SOTUE TSD110A truncation communication signal device is widely used because of the security needs of the border, the army, the wars, prisons, schools, churches, mosques, big speech places, stations, leaders' visit & large gathering places. Within a range of 600 ~ 800 meters, TSD110A device can cut off GSM / CDMA / DCS / PHS / 3G & 4G signals, TD-SCDMA / CDMA2000 / WCDMA phone signals or GPS / WIFI / Wimax and other communications signals, it makes the phone not able to call and receive, can cut off  wireless signals, and does not interfere with other electronic devices' work.
Application: TSD110A can cut off the wireless signals of remote control devices & cell phones and mobile phones in order to prevent illegal communications and detonating a bomb & explosives. In fact in some occasions, the mobile phones & cell phones and remote control devices of wireless signals have been used and become a crime tool for the criminals to commit crimes.

Feature:
1. Can cut off GSM / CDMA / DCS / PHS / 3G ( TD-SCDMA / CDMA2000 / WCDMA ) & 4G signals, can also cut off cellphones and mobile phones' signals. Each independent launch ( including antenna gain ). No harm to the human body.
2. Its effective jamming distance diameter is 600 ~ 800 meters adjustable ( you can adjust it in the field as needed ).
Note: optional: cut off 5G / GPS / WIFI / BLUETOOTH / Wimax communication signals, it can also be customized, it will add another costs.

Application areas and installation:
1. The protection of the border communication signals. 2. Operational needs of the war, important large gathering places, mosques
3. Detention centers, labor camps, prisons, school examination, big speech places, stations & churches.  4. Leaders' visit for high security protection demand and President convoy car security protection demand. Installation:  TSD110A can be installed on any places, such as: vehicle, mobile objects, fixed places and so on, It is convenient portable. Its installation and operation are simple.

Technical parameter:
1. Host size: 461 (L) x 339 (W) x 139 mm (H) . Power supply: 110V, 220V (±10%), 24V. Weight: 25kg. Isolation range: 600 ~ 800m
2. Environmental temperature conditions: - 40℃ to 55 ℃. Relative humidity: ≤ 90% ( RH ). Atmospheric pressure: 86 ~ 106 kPa. Outside the box with a lock, waterproof design, suitable for outdoor installation. 360 degree angle directional antenna.
3. Use the most advanced digital search frequency technology. Comprehensive intelligent digital control and use omnidirectional antenna.

Technical standards:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.  2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

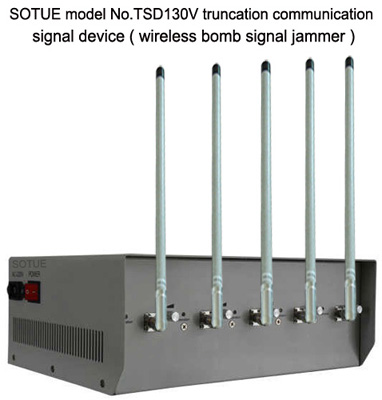

         SOTUE TSD130V truncation communication signal device ( wireless bomb signal jammer )
TSD130V truncation communication signal device is widely used in the security needs of the border, army, wars, prisons, schools, hotels, churches, mosques, big speech places, stations, leaders' visit etc.

Application:
TSD130V device can jam and cut off wireless signals of UHF, VHF, mobile phones and other remote control devices in order to prevent illegal communications and detonating a bomb & explosives. In fact in some occasions, the mobile phones and remote control devices have been used and become a crime tool for the criminals to commit crimes.
Installation: can be installed on any places, such as: vehicle, mobile objects, fixed places and so on, Its installation and operation are very simple and easy.
Technical data:
1. Host size: about 600 mm (L) x 380 mm (W) x 160 mm (H). Power supply: 110V ~ 220V (±10%), Weight: about 35kg. Environmental temperature: - 40℃ to 55 ℃. Relative humidity: ≤ 90% ( RH ).

TSD130V device can jam and cut off wireless signals of UHF, VHF, 3G ( TD-SCDMA, CDMA2000, WCDMA, WIMAX ), 4G, GPS, GSM and CDMA communication systems.

Optional: TSD130V device can jam and cut off wireless signals of VHF band frequency, UHF band frequency, CDMA800 band frequency, GSM900 band frequency, DCS/PHS band frequency, TD SCDMA band frequency, CDMA2000/WCDMA band frequency, 2.4G WI-FI band frequency or 5G signal.

Its effective jamming distance range is 800 meters adjustable.

Optional: Maximum Isolation range: is 1050 meters adjustable ( it depends on the different environmental condition changes ).

Technical standards:
1. Conform to EN60950-1:2006+A11:2009 electrical safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards. Conform to EN61000-3-2:2006+A2:2009 & EN61000-3-3:2008 product safety international standards. 2. Conform to EN61000-6-1:2007 product immunity international standard. 3. Conform to EN61000-6-3:2007 product emission international standard.

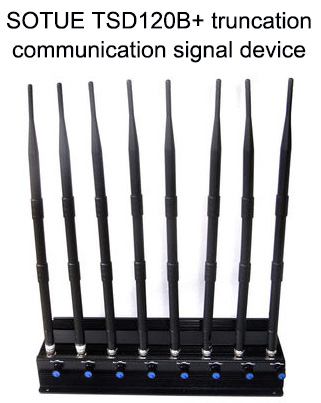

        SOTUE TSD120B truncation communication signal device ( wireless bomb signal jammer )

TSD120B can cut off cell phones' and mobile phones' communications, mobile phones are prohibited for use in some places, such as: in some government departments, military and finance departments, command centers, school examination, prisons, meeting, churches, mosques, Leaders' visit for high security protection, President convoy car security protection demand,etc.

Application: It can cut off the wireless signals of remote control devices & cell phones and mobile phones in order to prevent detonating a bomb & explosives and illegal communications. In fact in some occasions, the cell phones and mobile phones & remote control devices of wireless signals have been used and become a crime tool for criminals to commit crimes.
Installation: It can be installed on mobile objects, fixed places etc., It is convenient portable. Very simple installation and operation.

Functions & Technical data:
1. Its effective isolating and jamming communication signal distance diameter is 45 ~ 50 meters.
2. Power supply: 110V, 220V (±10%), 12V, optional: car cigarette lighter adaptor in a car for use or 12V rechargeable lead-acid battery adaptor in any places for use.

3. Jamming and Isolating signal frequencies as follows:
CDMA, GSM, GSM/PCS, 3G, 4G LTE, 4G WIMAX, WIFI 2.4G, GPS. Optional jamming signal: VHF, UHF, LOJACK, 5G signal etc..

4. It can work stably for a long time. Environment temperature: -30℃~ +55℃. Relative humidity:30% ~ 95%. Weight: about 2.9kg


Optional: cut off 5G or BLUETOOTH communication signals or signals of 18 MHz ~145 MHz frequencies, it can be customized, but you will add another costs.

Technical standards:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.  2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

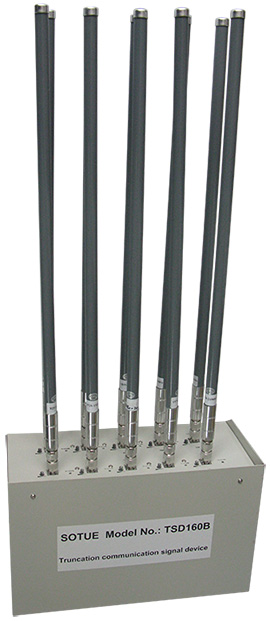

    SOTUE TSD160B truncation communication signal device ( IED bomb signal truncation device, bomb jamming device )

Application: It can cut off the wireless signals of remote control devices & GPS and mobile phones in order to prevent detonating a bomb & explosives and illegal communications, used and installed in some military & government departments, churches, mosques, field battle vehicles, Leaders' visit for high security protection and President convoy car security protection, etc.
Technical data:
Power supply: AC 220V (±10%), DC 24V, 18A. Weight: about 19 kg. Jamming area diameter: 60 m.
Device size: 440 mm (L) x  270 mm (W) x 220 mm (H). 10 pcs of Antennas. 10 pcs Antennas' weight: 2.0 kgs. Optional: Antenna connection cables. It can work stably for a long time. Environment temperature: -30℃~ +55℃. Relative humidity:30% ~ 95%.
Jamming and Isolating signal bandwidths:
TDMA, CDMA, AMPS, NMTP, ETACS, GSM900, GSM1800, DCS, W-CDMA, PCS, 3G, CDMA2000, GPS and 4G.
Optional: cut off 5G or WIFI or  BLUETOOTH or LOJACK / Wimax communication signals, it can be customized, but you will add another costs.


Technical standards:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.  2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

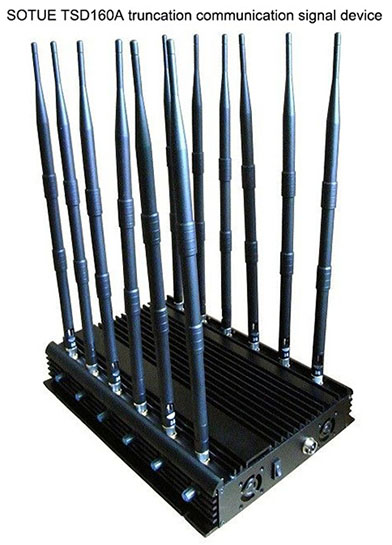

     SOTUE TSD160A truncation communication signal device ( IED bomb signal truncation device, bomb signal jammer )

It can cut off cell phones' & mobile phones' communications and wireless device signals, mobile phones are prohibited for use in some places, such as: in some government departments, military and finance departments, command centers, school examination, prisons, meeting, churches, mosques, Leaders' visit for high security protection and President convoy car security protection demand, etc.

Application: It can cut off the wireless signals of remote control devices & cell phones and mobile phones in order to prevent detonating a bomb & explosives and illegal communications. In fact in some occasions, the cell phones & mobile phones and wireless remote control devices have been used and become a crime tool for criminals to commit crimes.
Installation: It can be installed on mobile objects, fixed places etc., It is convenient portable. Simple installation & operation.
Functions & Technical data:

1. Its effective isolating and jamming communication signal distance diameter is 50 ~ 60 meters.
2. Power supply: 110V, 240V (±10%), 12V, optional: car cigarette lighter adaptor in a car for use or 12V rechargeable lead-acid battery adaptor in any places for use.

3. Jamming and Isolating signal frequencies as follows:
CDMA, GSM, DCS, PCS, 3G, GPS, WIFI 2.4G, VHF, UHF, 4G LTE, 4G WIMAX and LOJACK.
Optional: jamming 5G or 433 or 315 or 868 or GPS L2.3.4.5 signals for you.

4. It can work stably for a long time. Environment temperature: -30℃~ +55℃. Relative humidity:30% ~ 95%. Weight: about 4.5kg


Optional: If you need to cut off BLUETOOTH communication signals, it can be customized, optional 18 antennas, but you will add another costs.

Technical standards:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.  2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

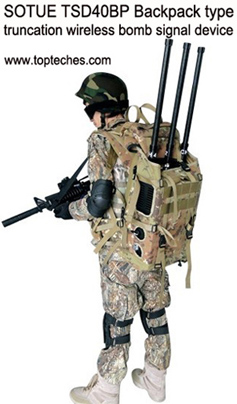

   SOTUE TSD40BP Backpack type truncation wireless bomb signal device ( bomb jamming device )
Application:
SOTUE TSD40BP can prevent the wireless remote control devices & mobile phones and cell phones to remote control detonation.
TSD40BP can cut off the wireless signals of remote control devices & cell phones and mobile phones in order to prevent detonating a bomb & explosives and illegal communications. In fact in some occasions, the mobile phones & cell phones and remote control devices of wireless signals have been used and become a crime tool for the criminals to commit crimes.
The army and police departments have widely used TSD40BP in removing explosives or bombs, in order to prevent their explosion.
Application areas:
1. The protection of the border communication signals. Operational needs of the war.
2. Security needs of mosques, school examination, big speech places, stations, churches and so on.
3. VIP's or Leaders' visit for high security protection demand and President convoy car security protection demand.
Technical data:
1. Jamming frequency range: GSM850, CDMA800, GSM900, GSM1800, CSM1900, W-CDMA, CDMA2000, WIFI, 2G, 3G, 4G, GPS etc., optional: jamming 5G, VHF, UHF or Bluetooth signals.
2. Host Size: 428 mm (L) x 328 mm (W) x 163 mm (H); Power supply: 110V, 220V (±10%). Weight: about 15kg. Environmental temperature: ~30℃~ +60℃. Three outer antennas.
3. Jamming distance: Jamming distance radius is about 40m. The built-in battery can continuously work for 2 hours after it is full recharged.
Technical standards:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.
2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

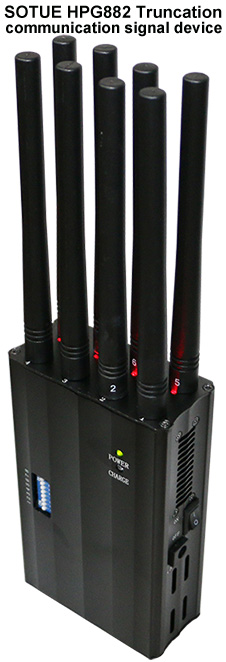

SOTUE HPG882 Truncation communication signal device ( Hand-held phone & GPS signal Jammer )

Application:
HPG882 can cut off the wireless signals of remote control devices & cell phones and mobile phones in order to prevent detonating a bomb & explosives and illegal communications, widely used in military & government departments, school examination, meeting, churches, mosques, Leaders' visit for high security protection, President convoy car security protection demand,etc.
Feature:
HPG882 can cut off GPRS, GSM, DCS, CDMA, PDC, TDMA, PHS, PCS, iDEN, W-CDMA, UMTS, 3G, 4G and GPS signals, it makes the phone not call and receive, can cut off wireless signals, doesn't interfere with other electronic devices' work. Optional: jamming WIFI, Bluetooth or 5G signals.
Technical data:
1. Each independent launch ( including antenna gain ).  No harm to the human body.  Weight: 400g.  Switch: ON / OFF.  2. Its effective jamming distance range is 15 ~ 20m, it can be put into a pocket or a car for your use.  3. Size: 130 mm (L) x 69 mm (W) x 38 mm (H). Rechargeable battery: 12V, 4500MAH. Power supply: 100V ~ 220V (±10%). Output DC: 12V. Multi-function jammer. Optional: Black color.
Technical standards:
1. Conform to EN60950-1:2006 A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.  2. Conform to EN61000-3-2:2006 A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.
